The webbing sling consists of a sewn webbing component, with or without fittings for attaching loads to the hook of a crane or other lifting machine, and it is intended for general purpose lifting operations, i.e. when used for lifting objects, materials or goods, but not including the lifting of persons, potentially dangerous materials such as molten metal and acids, glass sheets, fissile materials, nuclear reactors and where special conditions apply. The component webbing is made of polyamide, polyester or polypropylene industrial multifilament, and its width range goes 25mm to 450mm inclusive. All slings are colour coded, identifying the relevant working load limit, and are individually labelled stating sling number, material, length, date of manufacture and any relevant safety information.  All load bearing seams are sewn with a contrasting colour of thread to the sling, to facilitate inspection procedures.Slings can be manufactured to any specified length with flat eyes, folded eyes or steel terminals to suit all applications.



Material: 100% polyester (PES), high tenacity multifilament

               100% polyamide (PA), high tenacity multifilament

               100% polypropylene (PP), high tenacity multifilament

Performed standard: EN1492-1:2000, JB/T8521.1-2007, AS1353.1-1997

Safety factor: 7:1, 6:1, 8:1, 5:1

Length: Available from 1 to 100m or as required

Width: 25mm to 300mm inclusive

WLL: 0.50 to 48.00 ton inclusive

Webbing layer: from 1 to 4

Color: International standard

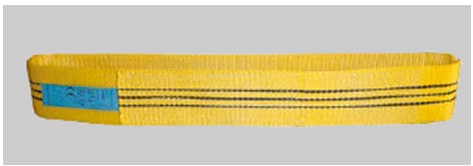

                                   Polyester webbing sling

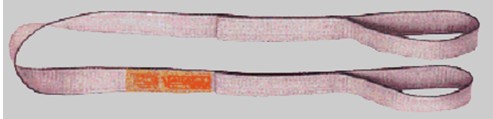

                                   Polyamide webbing sling

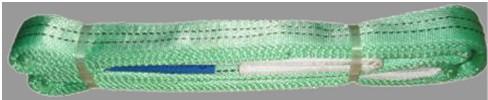

                                  Polypropylene webbing sling







Made from 100% high tenacity polyester (PES),to EN 1492-1, Shape type A2, A4, single and double-layer constrution optional , attached with capacity label.



For its endless shape, the using life to be added by change of the load bearing point;

High force to weight ratio;

Color code, in light of international standard to validate sling capacity;

Each stripe equals to 1 ton capacity, by which sling capacity is discerned easily;



Light and supple;

No damage to delicate and painted surfaces;

Resistant to twist or tie;

Polyester webbing sling is resistant to most mineral acids but damaged by alkalis (Polyamide webbing sling is virtually immune to the effect of alkalis but attacked by mineral acids. Polypropylene webbing sling is little affected by acids or alkalis and suitable for use where the highest resistance to chemicals other than solvents is required). Immune to complete water, oil and grease;
Handling easily;
Utilisations without gloves or other protections;
Low extension not more than 3% at rated capacity;

Work and storage temperature range is -40℃ to 100℃ (-40℉ to 212℉), which is identical to that

of webbing sling made from nylon but different from -40℃ to 80℃ (-40℉ to 176℉) of the webbing

sling made from polypropylene;

High resistance to abrasion;

No junctions inside.
