Webbing materials

Our factory produces the series of webbing for production of webbing sling, roundsling, web lashing, and safety harness, etc. The webbings are manufactured respectively to the performed standards of EN1492-1, EN1492-2, EN12195-5, ASME B0.9, AS1353.1, AS4497.1, EN361, etc. Their quality and appearance are strictly controlled by our own in-house quality control system. Generally, such materials as high tenacity multi-filament of polyester, nylon and polypropylene have got used for production of the webbings. We produce the undermentioned main series of webbings with the conventional models for the needs from the different markets, and meanwhile, welcome to accept the custom-production upon request including individual imprint on the webbing such as letters, signs or logos. 50 or 100 metre per roll and 165 or 330 feet per roll, or upon request.

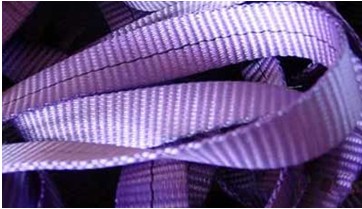

European type polyester webbing for webbing sling (type 1)


Art. No.
Color code
Width(MM)
MBF(kgf)
W7E030
Purple
30
4500
W7E060
Green
60
9000
W7E090
Yellow
90
13500
W7E120
Gray
120
18000
W7E150
Red
150
22500
W7E180
Brown
180
27000
W7E240
Blue
240
36000
W7E300
Orange
300
45000


European type polyester webbing for webbing sling (type 2)
Art. No.
Color code
Width(MM)
MBF(kgf)
W7E050V
Purple
50
4500
W7E050G
Green
50
9000
W7E075
Yellow
75
13500
W7E100
Gray
100
18000
W7E125
Red
125
22500
W7E150
Brown
150
27000
W7E200
Blue
200
36000
W7E250
Orange
250
45000
W7E300
Orange
300
54000


China type polyester webbing for webbing sling
Art. No.
Color code
Width(MM)
MBF(kgf)
W6E025
Purple
25
4000
W6E050
Green
50
8000
W6E075
Yellow
75
12000
W6E100
Gray
100
16000
W6E125
Red
125
20000
W6E150
Brown
150
24000
W6E200
Blue
200
32000
W6E250
Orange
250
40000
W6E300
Orange
300
48000

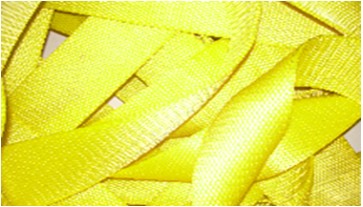

US type polyester webbing for webbing sling


Art. No.
Color code
Width(inch)
MBF(lbs)
W5E1
Yellow

1
9,800
W5E2
Yellow

2
19,600
W5E3
Yellow

3
29,400
W5E4
Yellow
4
39,200
W5E5
Yellow

5
49,000
W5E6
Yellow

6
58,800
W5E8
Yellow

8
78,400
W5E10
Yellow

10
98,000
W5E12
Yellow

12
117,600


US type nylon webbing for webbing sling
Art. No.
Color code
Width(inch)
MBF(lbs)
W5A1
Yellow

1
9,800
W5A2
Yellow

2
19,600
W5A3
Yellow

3
29,400
W5A4
Yellow

4
39,200
W5A5
Yellow

5
49,000
W5A6
Yellow

6
58,800
W5A8
Yellow

8
78,400
W5A10
Yellow

10
98,000
W5A12
Yellow

12
117,600
