Web lashings

Description
Web lashing is designed to be attached to the lashing points in order to secure the cargo on  vehicle e.g. trucks and trailers which are used on roads or located on vessels or on rail waggons and/or combinations thereof, or play a role of fixing objects,  consisting of a tensioning device or a tension retaining device and flat woven textile webbing with or without end fittings.The webbing is made from polyester, polyamide or polypropylene. It has such two main types as one-piece web lashing and two-piece web lashing.
Technical parameter
Material of webbing: High tenacity multi-filament, polyester, polyamide or polypropylene
Performed standard: EN12195-2, ASME B30.9
Safety factor: 2 :1, 3 : 1
Lashing capacity: 400daN to 5000daN
Width: 25 to 100MM
Color: popular color as blue, orange, black, red, yellow, grey and others.
Length: 1 to 16M or upon request

Features
Easy to handle
Woven stripes on webbing indicate the minimum breaking force. And the stripes can not be woven if required;
Webbing made from polyester material not to be easy to absorb water, and moreover, resistant to abrasion. It is attacked by alkalis but resistant to mineral acids and suitable for use in the temperature range of -40 to 120¡æ(-40 to 248¨H);
Choice fittings on ends are heat-treated, secure and safe. Many fittings optional;
Colors are versatile and multiple, and at the same time, can also be specified as required;
PU coating or protective sleeves to be applied if required;
Low extension, not more than 7% at 1 LC.
The imprint on webbing also optional.


Ratchet tie down straps (Two-piece)

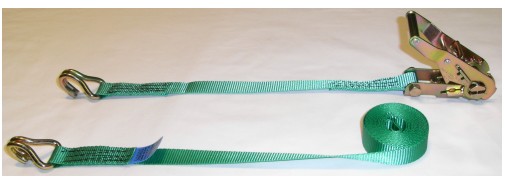

Width 25MM ratchet tie down strap
Description: Two-piece, EN12195-2, Width 25MM, material of webbing: 100% polyester, safety factor: 2:1, ratchet buckle tensioning device, with fittings on both ends.
Art. No.
Fixed end length(M)
Width (MM)
LC in daN
End fittings
Fittings
Art. No.

RL2505-1H12

0.30

25

500

1000

2505H12

RL2505-1H11

0.30

25

500

1000

2505H11

RL2505-1H33

0.30

25

500

1000

2505H33

RL2505-1L1

0.30

25

500

1000

2505L1

RL2505-1H41

0.30

25

500

1000

2505H41

RL2505-1H46

0.30

25

500

1000

2505H46

RL2505-1H34

0.30

25

500

1000

2505H34

RL2505-1H31

0.30

25

500

1000

2505H31

Remarks

Tensioning device: Mini ratchet buckle(Art. No.:RB2505-1), width 25MM, M.B.F.1000daN

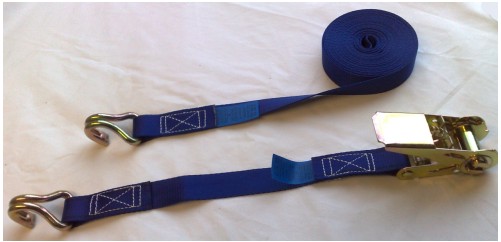

Width 35MM ratchet tie down strap
Description: Two-piece, EN12195-2, Width 35MM, material of webbing: 100% polyester, safety factor: 2:1, ratchet buckle tensioning device, with fittings on both ends.
Art. No.
Fixed end length(M)
Width (MM)
LC in daN
End fittings
Fittings
Art. No.

RL3510-1H12

0.50

35

1000

2000

3510H12

RL3510-1H42

0.50

35

1000

2000

3510H42

RL3510-1H33

0.50

35

1000

2000

3510H33

RL3510-1L1

0.50

35

1000

2000

3510L1

RL3510-1H41

0.50

35

1000

2000

3510H41

RL3510-1H34

0.50

35

1000

2000

3510H34

Remarks

Tensioning device: Pressed ratchet buckle(Art. No.:RB3510-1), width 35MM, M.B.F.2000daN
